Babbitt white metal bearings play a vital role in a variety of industrial processes with higher performance, longevity, and efficiency. They minimize wear and friction within a rotating machine and enable it to move with ease and last a long period of time.
In this comprehensive guide, we will explore everything you need to know about Babbitt metal bearings, including their composition, benefits, applications, and white metal bearing repair processes.
What Is a Babbitt White Metal Bearing?
Babbitt metal bearings, also known as white metal bearings, are soft metal bearing material with a low melting temperature and consisting of a major combination of tin, lead, antimony, and copper. The unique blend of the Babbitt metal guarantees excellent conformability and embeddability with good fatigue life and superior fatigue strength, and therefore it is a good fit for heavy and high-speed applications.
Development and History of Babbitt Bearing-
Babbitt metal was invented by Isaac Babbitt in 1839, and since then, it has been widely used in bearing applications across multiple industries. Initially, these bearings were used in steam engines and early industrial machinery, but their usage has expanded significantly with advancements in engineering and technology. Today, Babbitt white metal bearings are found in turbines, compressors, marine engines, and more.
Structure of Babbitt metal Bearing-
The composition of Babbitt metal varies depending on the specific application, but the primary components typically include:
- Tin (Sn): It provides excellent corrosion resistance and mechanical strength.
- Lead (Pb): Provides lubricity but has limited use nowadays with the environment at the forefront of attention.
- Antimony (Sb): Hardens and increases fatigue life.
- Copper (Cu): It strengthens and increases wear resistance.
These combine to form a substance with superior anti-friction properties and thus highly valuable in a multitude of industrial environments.
Benefit of Babbitt White Metal Bearing:
Babbitt white metal bearings provide numerous advantages that make them a leading choice in critical machine applications. Among the primary advantages include:
- High Load Capacity: These heavy-duty bearings will be used in turbines, compressors, and engines and will be capable of withstanding heavy loads.
- Low Friction and Efficient: The soft surface of the Babbitt metal reduces the friction, facilitates smooth rotation of the working parts, and improves the efficiency overall.
- Excellent Conformability and Embeddability: Babbitt metal bearings can conform to slight imperfections in the shaft, preventing excessive wear and tear. Their embeddability allows small particles to be absorbed, reducing the risk of damage.
- Increased Heat Dissipation: These bearings also exhibit excellent thermal conduction, disperse the heat that comes with friction, and prevent overheating.
- Simple Repair and Maintenance: One of the significant advantages of Babbitt white metal bearings is their ease of repair. The bearings can be re-lined or re-babbitted, extending their service life without replacing the entire unit.
- Corrosion Resistance: It has excellent resistance against corrosion, and hence it is a suitable option for application in moist environments, chemical environments, and environments with harsh temperatures.
Uses of babbitt metal bearings-
Babbitt bearings are used in a variety of industries, including
- Power generation-
- Steam turbines
- Hydro turbines
- Generators
- Petroleum and Natural Gas Sector-
- Condense
- Pump
- Gearboxes
- Maritime Industry-
- Ship engines
- Propeller Shafts
- Stern tube bearings
- Automotive and heavy machinery-
- Diesel engines
- Train engines
- Industrial presses
- Manufacturing and Processing-
- Rolling mills
- Paper mills
- Textile machinery
White Metal Bearing Repair: Extending Service Life-
Despite their durability, Babbitt metal bearings can experience wear over time due to high loads and prolonged operation. Instead of replacing the entire bearing, white metal bearing repair methods can restore their functionality and extend their lifespan.
Common Repair Methods:
- Bearing Re-Babbitting-
- The old Babbitt metal is removed.
- The bearing shell is cleaned and prepared.
- New Babbitt metal is poured, ensuring a strong bond.
- The surface is machined to precise dimensions.
- Bearing Resurfacing-
- Minor surface damage is repaired using specialized techniques.
- The bearing surface is polished for smooth operation.
- Crack Repair and Welding-
- Cracks in the bearing shell are welded and reinforced.
- The bearing is heat-treated to restore its strength.

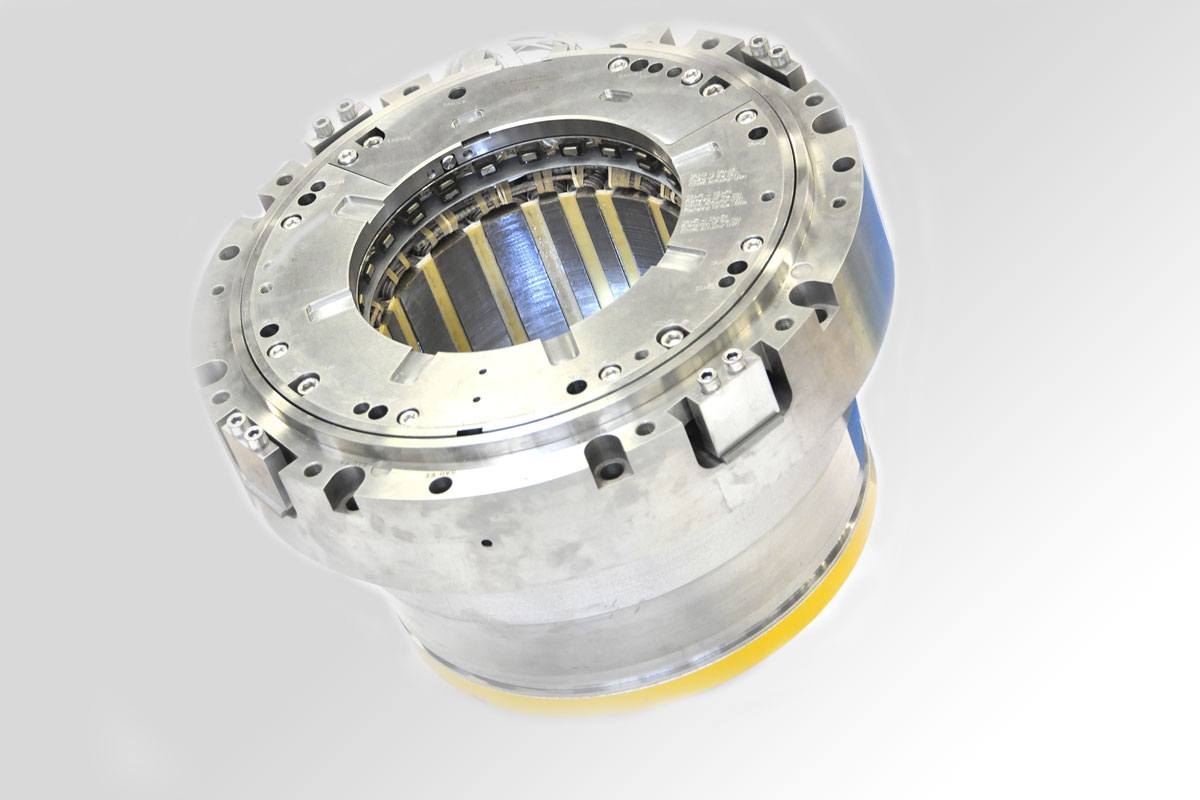

Hydrostatic Bearing Tilting Pad Technology: Performance Enhancement-
The tilting pad design of the bearing is a major development in the field of bearing technology that enhances stability and load distribution in the field of high-speed use. The tilting pad bearings also possess individual tilting and dynamically adaptable pads that offer a variety of advantages:
Benefits of Bearing Tilting Pad Design-
- Reduces vibrations: Makes the rotating machine stable.
- Reduces wear: Adjusts with changing loads and reduces the stresses against the bearing surface.
- Improves Efficiency: Optimizes lubrication and reduces frictional losses.
- Runs at Higher Speeds: Particularly suitable for turbines, compressors and higher-speed pumps
Maintenance of the Babbitt Bearing:
The Babbitt white metal bearings require regular maintenance to help them last and function properly. Here are some best practices:
- Timely Greasing: Use premium lubricants and minimize wear and friction.
- Periodic Inspection: Check the tires for wear, cracks, and overheating.
- Proper Alignment: Properly align the shaft and the bearings to prevent uneven wear.
- Temperature Monitoring: Monitor working temperatures in order to identify any issues at an early stage.
- Timely Repairs: Address minor damage promptly to prevent costly failures.
Future Trends in Babbitt White Metal Bearings-
With advancements in materials science and engineering, Babbitt bearings continue to evolve. Some future trends include:
- Eco-Friendly Babbitt Materials: Lead is being removed from new formulations while preserving high performance.
- Smart Bearing Technology: IoT-enabled monitoring systems and sensors are being combined to provide real-time bearing health data.
- Advanced Coatings and Surface Treatments: Innovations in coatings are improving wear resistance and extending bearing life.
- 3D Printing of Bearings: Additive manufacturing is making it possible to create customized bearing solutions with enhanced properties.
Conclusion-
Babbitt white metal bearings play a critical role in various industries, providing high load capacity, low friction, and excellent heat dissipation. Their ability to be repaired through white metal bearing repair techniques makes them a cost-effective and sustainable choice for many applications.
Additionally, advancements such as bearing tilting pad technology have further improved bearing performance, ensuring smooth and efficient operation in high-speed machinery. By following proper maintenance practices and leveraging repair methods, industries can maximize the lifespan and reliability of Babbitt metal bearings, ensuring optimal performance for years to come.
